Name: TOA BS1030 30w Wall Mount Box Speaker - Black
Brand: TOA
SKU: BS1030
Price: 290.00 MYR
Availability: InStock

TOA BS1030 30w Wall Mount Box Speaker - Black

RM290.00 RM368.00

TOA BS1030 30w Wall Mount Box Speaker - Black

Price	RM290.00 RM368.00
Product SKU	BS1030
Brand	TOA
Availability	In Stock

Quantity

Product
Description
Reviews (0)

Description

Highlight
								Wall Mount Box Speaker
Enclosure - 2-way bass-reflex type
Rated Input - 30 W
Rated Impedance - 8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W). 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level - 90 dB (1 W, 1 m)
Frequency Response - 80 Hz - 20 kHz
Speaker Component - 12 cm cone-type + dome-type
Speaker Cord - 2-core cabtyre cord with diameter of 6 mm
Operating Temperature - -10 ℃ to +50 ℃

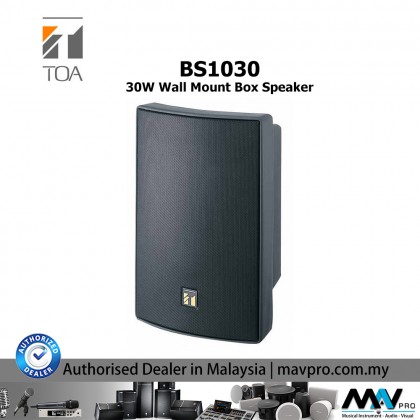

TOA BS1030 30w Wall Mount Box Speaker

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

SPECIFICATION

Rated Input	30 W
Rated Impedance	8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level	90 dB (1 W, 1 m)
Frequency Response	80 Hz - 20 kHz
Speaker Component	12 cm cone-type + dome-type
Speaker Cord	2-core cabtyre cord with diameter of 6 mm
Operating Temperature	-10 ℃ to +50 ℃
Water Protection	IPX4 (can be installed vertically or horizontally.*)
Finish	Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK, powder coating
Dimension	196 (W) × 290 (H) × 150 (D) mm (unit only)
Weight	2.5 kg (unit only)
Accessory	Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
Option	Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A
